CO2 Dry Ice Pellets Making Machine Industrial Large Dry ice production 500-1000kg/h for Dry ice factory /plant

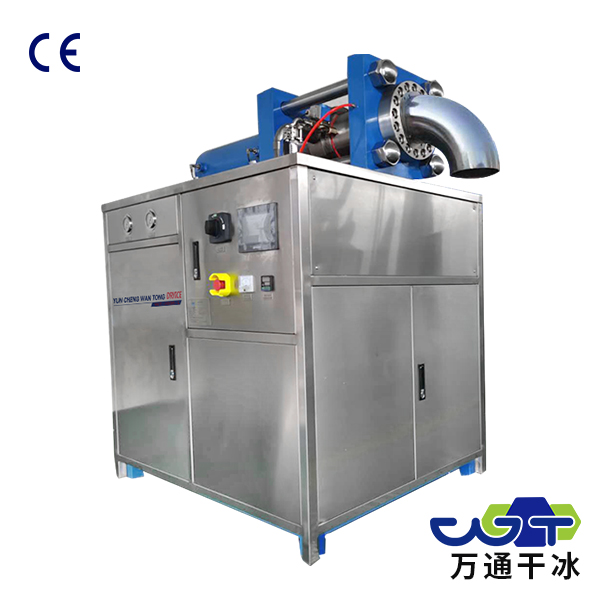

Dry ice pelletizer WT-2000-2
Model No.WT-2000-2 Dry Ice Pelletizer
Total machine power15 kw37kw
Power supply380V/50HZ/3P380V/50HZ/3P
Capacitymax 500Kg/hmax 1000kg/h
Dry ice size mold3 /6/9 /16 mm3 /6 /9 /16 mm
Dry ice densityFood grade ≧1.5
Industrial grade ≧1.3
Food grade ≧1.5
Industrial grade ≧1.3
Transformation rate≥42% ≥42%
Machine dimensions1400×1420×1680 mm1960×1420 x1820mm
Weight2000 kg2850kg
Liquid inlet pressure≤2.1 Mpa≤2.1 Mpa
Feul tank volume300 liter500 liter

Dry ice pellets making machine series -WANTONG China Supplier

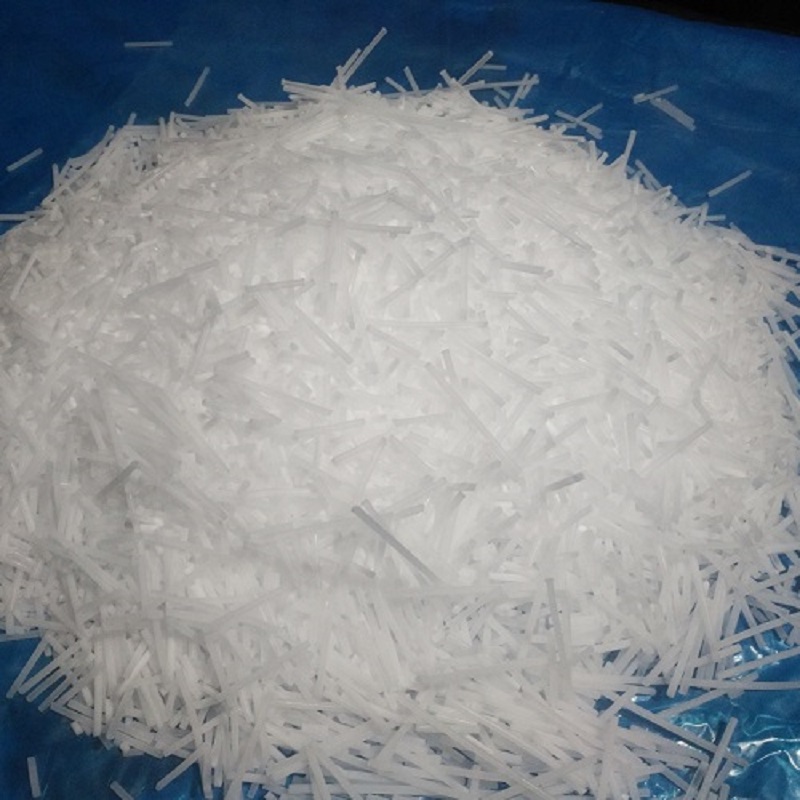

This mode WT-2000-2 is a double cylinder control type dry ice making machine , it is mainly composed of hydraulic system, electrical control system and extrusion molding system. Using hydraulic extrusion molding, LCO2 as material , with different dry ice size mold 3mm –19mm to produce translucent, high density dry ice pellets or bullets .

It has two kind of capacity , 300-500kg/h or 800-1000kg/h ; for large quantity dry ice production , it can work together with the dry ice block reformer , bagging machine to be a whole automatic line , easy opperation and high efficiency .

All the key parts and components are with good quality , to ensure the safety and stable peration of the equipment. With low failure rate, the equipment can produce for 24 hours continuously. Can meet large quantity dry ice demands .

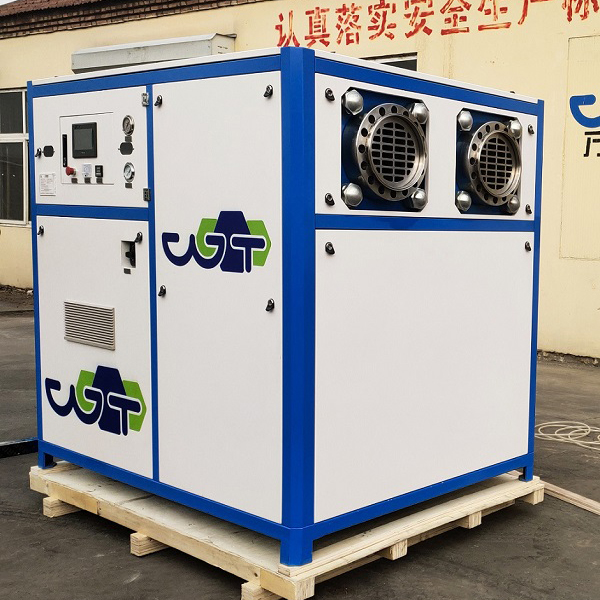

With New Design Features

  • Generous and simple appearance, easy to clean;
  • Upgrade to closed body , lower production noise;
  • Intelligent operation, one-button start and stop;
  • Customize different production capacity according to your needs;
  • Cylinder of double-head machine can be independently controlled;
  • Different sizes of molds can be selected according to different demands, which is convenient and fast to change.

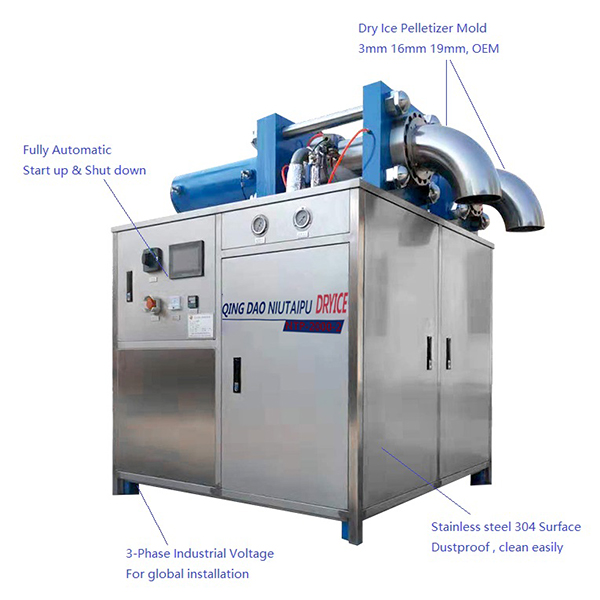

Dry ice pelletizer 2000-2

Manually replace dry ice extrusion mold is easy , one machine with different sizes producing , which will meet some dry ice factory/plant customer who wants to produce and sell more sizes of dry ice products .

Video below on our Youtube channel @wantongdryicemachine  will be for you reference:
